RAM MOUNTS Panel Mount for Apple iPad mini 1-4 - i
More Products from +++ RAM MOUNTS USA +++ to look at

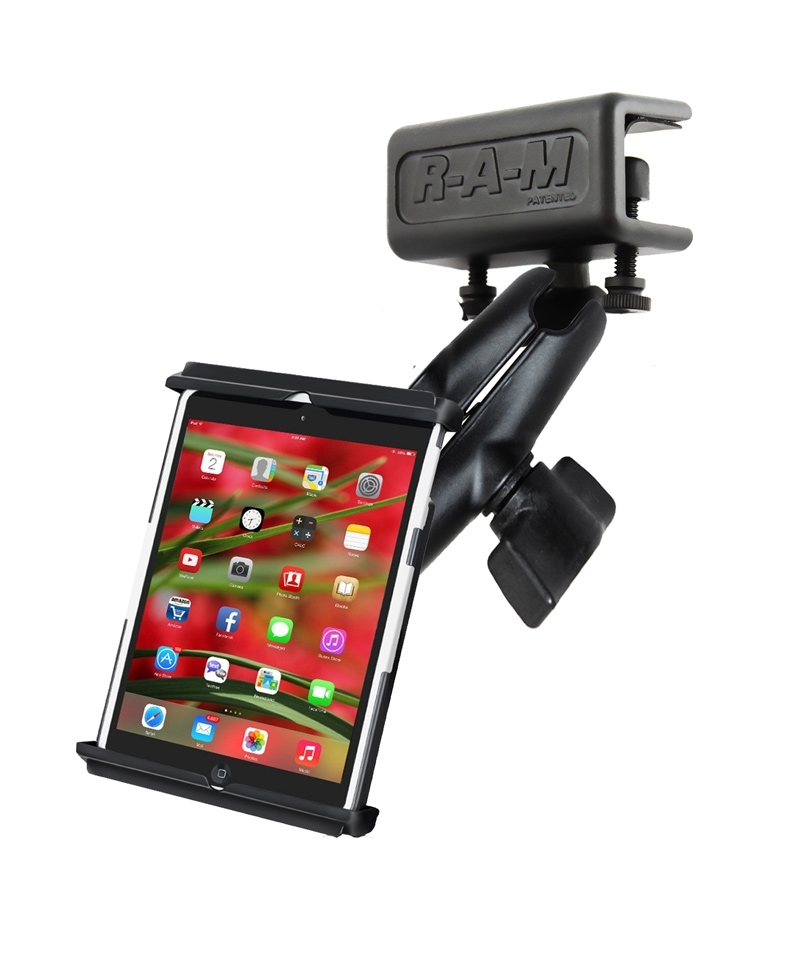

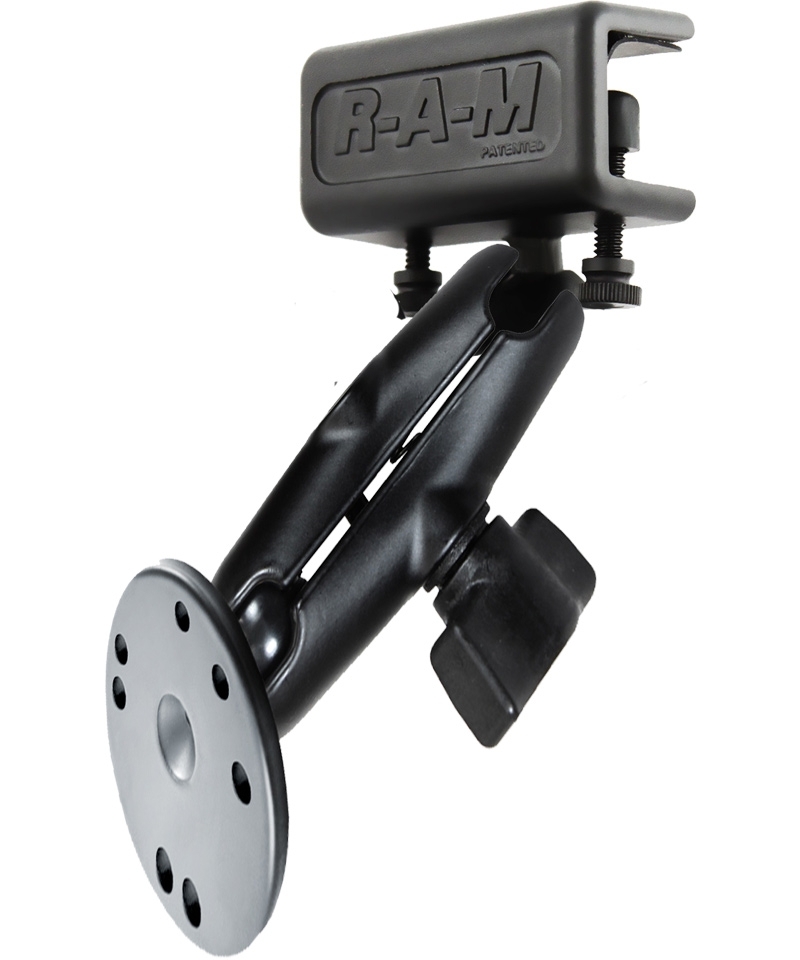

This RAM Mounts complete panel mounting solution for the Apple iPad mini 1-4 (incl. thin sleeves) and other 7" tablets consists of a panel mount clamp (opening 1.1" high, 0.94" deep), a medium double socket arm, a round base plate and the universal Tab-Tite unit cradle for the device. To mount the base, simply place the clamp on suitable panels and then screw both tight. The hand tightened clamp makes this the perfect mounting system for rental planes.
The universal Tab-Tite cradle is also compatible with any tablet that will fit the dimensions listed below.
Tab-Tite min./max. cradle dimensions:
· Height: 6.80" minimum to 9" maximum
· Width: maximum width to 5.68"
· Depth: 0.125" minimum to 1" maximum

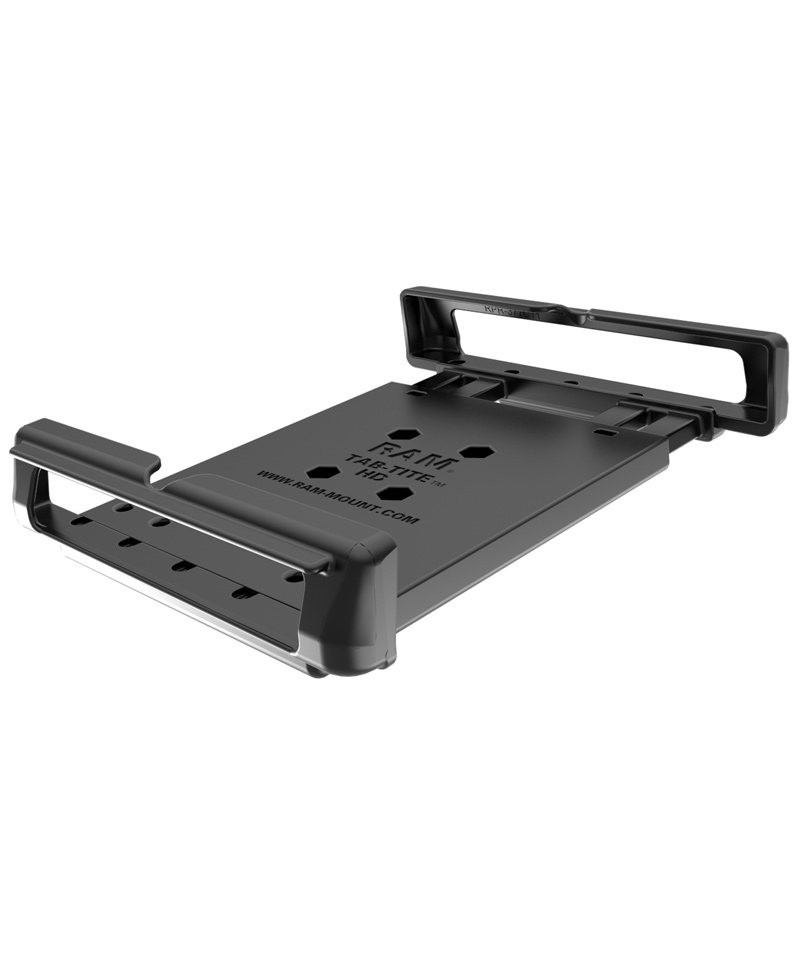

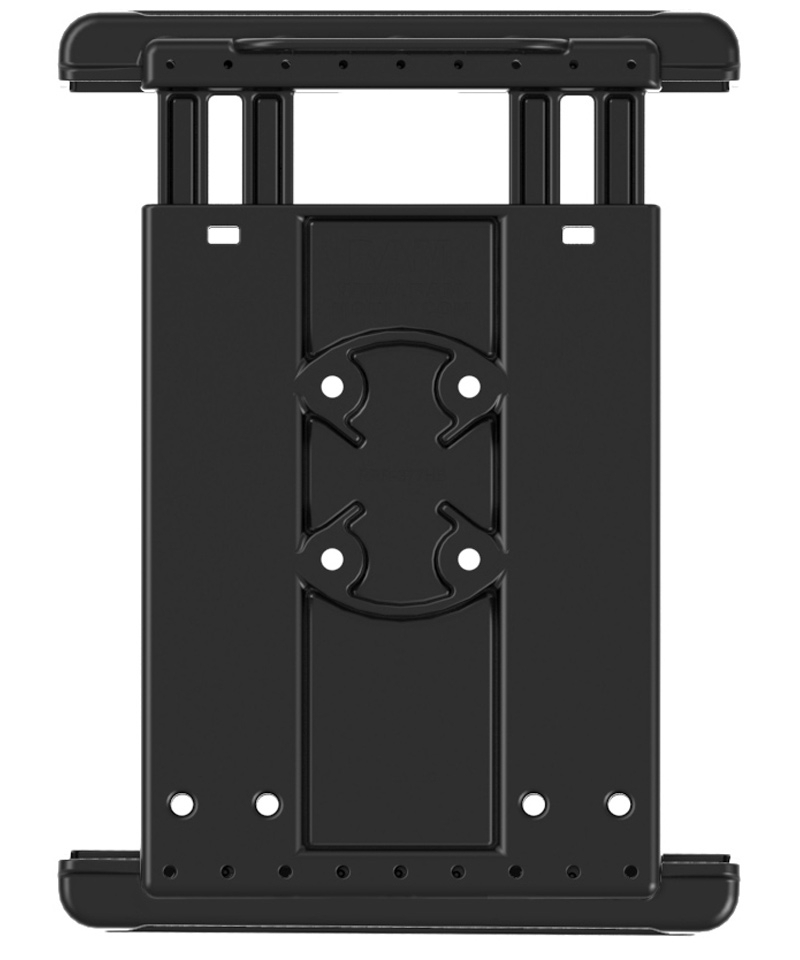

Tab-Tite cradle (RAM-HOL-TAB12U) features:
· Support cups contain open slots to accommodate for tablets of various sizes
· Back plate can support various size support cups
· Spring loaded tension provides secure support for your tablet
· Spring loaded cradle allows for quick release of your tablet
· High strength materials maximize longevity of cradle
· Full access to all ports
· Recommended for low vibration environments
Material: Powder Coated Marine Grade Aluminum (clamp, connector, base plate), High Strength Composite (unit cradle)
Opening clamp: 1.1" high, 0.94" deep
Ball Size: 1" Rubber Ball (B-Ball size)
Color: black
Note: displayed devices are not part of the delivery. Delivery includes the RAM Mounts panel mount for the Apple iPad mini 1-4 only!
